The STRO (Shannel Tube Reverse Osmosis) membrane is a new-generation high-pressure pipeline reverse osmosis membrane developed specifically for the concentration, recovery, and compliant discharge of high-concentration, high-salinity, and low-suspended-solids wastewater.
The STRO membrane element combines the advantages of both open-channel and spiral-wound element designs, featuring a unique 45° diamond-shaped double-layer open channel structure. This innovative design overcomes the shortcomings of conventional reverse osmosis membrane modules by significantly optimizing fluid dynamics performance and greatly reducing the fouling and scaling issues common in traditional systems.
The main components of the STRO assembly are membrane elements, pressure vessels, and two terminal flanges. Within each membrane element, every two sheets of membrane are laser-welded together with a permeate separation grid to form a membrane pad. Each pad is separated from adjacent pads by a feed grid, and multiple pads with feed grids are sequentially spiral-wound to form the complete membrane element.

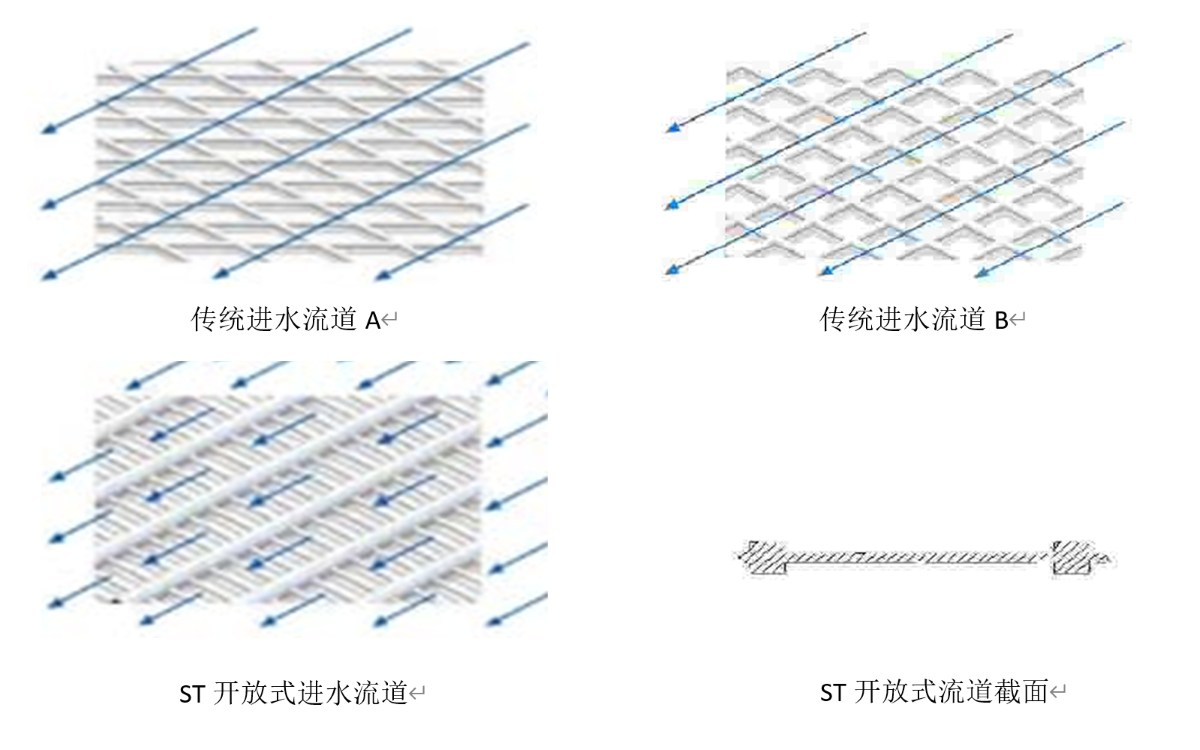

1) Feed Channel Improvement
The width of the feed channel is widely recognized as the most critical indicator of anti-fouling performance in reverse osmosis membrane elements. Traditional spiral-wound membranes suffer from mesh clogging and scaling, which restricts the feed channel and increases pressure differential. The STRO membrane element addresses this by combining open-channel and spiral-wound design advantages, creating a narrow yet open channel structure that greatly optimizes the effective area of both the feed channel and membrane surface.

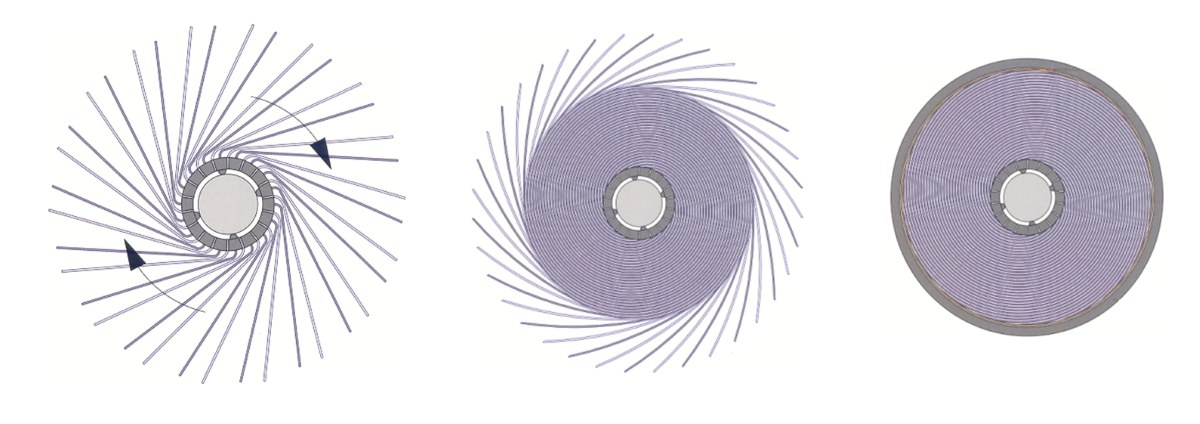

2) Winding Method Improvement
The STRO membrane employs shortened blades with an increased number of blades, which provides the following benefits:
High Desalination Rate: Under standard testing conditions, the desalination rate reaches 99% with stable performance, delivering superior product water quality. For more information on desalination technologies, see Desalination Technologies Overview.
Anti-Fouling & Anti-Scaling: Special fluid hydraulic design reduces concentration polarization and improves fouling and scaling resistance. To learn how this impacts the efficiency of High Salinity Wastewater Treatment, read our detailed analysis.
Special Flow Channel: The 45° diamond-shaped double-layer flow channel design provides better cleaning effectiveness and easier performance recovery.
Easy Maintenance: Modular design with 1-6 units in series configuration, easy to clean and maintain. This design simplifies maintenance and maximizes operational uptime, as explained in Membrane Maintenance Guide.
Compact Footprint: High membrane packing density reduces equipment footprint and overall project cost.
Extended Service Life: Fewer seals simplify maintenance, extend service life, and significantly reduce replacement costs.
| Parameter | Unit | Value |
| COD | mg/L | ≤ 2000 |
| Ammonia Nitrogen | mg/L | ≤ 1000 |
| SDI5 | / | ≤ 20 |
| Conductivity | μS/cm | ≤ 30,000 |
| Parameter | Removal Rate |
| COD | ≥ 95% |
| Ammonia Nitrogen | ≥ 95% |
STRO Membrane Parameter Table
| Parameter | STRO-25-90bar | STRO-27-90bar | STRO-27-120bar | STRO-27-120bar |
| Feed Flow Rate | 4-8 m³/h | 5-12 m³/h | 4-8 m³/h | 5-12 m³/h |
| Max Cleaning Temperature | 45 ℃ | |||
| Max Operating Temperature | 40 ℃ | |||
| Max Operating Pressure | 90 bar | 90 bar | 120 bar | 120 bar |
| Normal Operating Pressure | 40-80 bar | 40-80 bar | 60-110 bar | 60-110 bar |
| Total Length | 1200 mm | 1400 mm | 1200 mm | 1400 mm |
| Module Diameter | 218 mm | 218 mm | 244 mm | 244 mm |
| Membrane Area | 25 ㎡ | 27 ㎡ | 25 ㎡ | 27 ㎡ |
| Normal TMP | 0.5-0.7 bar | |||
| Desalination Rate (25℃) | ≥ 98.5% | ≥ 98.5% | ≥ 97.5% | ≥ 97.5% |
| Flow Channel Design | 45° Diamond Double-Layer Open Channel |
| Membrane Area | 25 ㎡ / 27 ㎡ |
| Module Length | 1200 mm / 1400 mm |
| Module Diameter | 218 mm / 244 mm |
| Max Operating Pressure | 90 / 120 bar |
| Desalination Rate (25℃) | ≥ 97.5% - 98.5% |
| Max COD Tolerance | ≤ 2000 mg/L |
| Max Ammonia Nitrogen | ≤ 1000 mg/L |
| Max Conductivity | ≤ 30,000 μS/cm |
| Application | High-Salinity Wastewater Concentration, Recovery, Zero-Liquid Discharge |
Stable high desalination performance under standard testing conditions
Diamond-shaped double-layer flow channel reduces fouling and improves cleaning recovery
Special fluid hydraulic design reduces concentration polarization and scaling tendency
Operating pressure up to 120 bar for high-salinity wastewater concentration
1-6 units in series, easy to clean, maintain, and expand
Auto pressure control, stop & flush mode, minimal operator experience required
